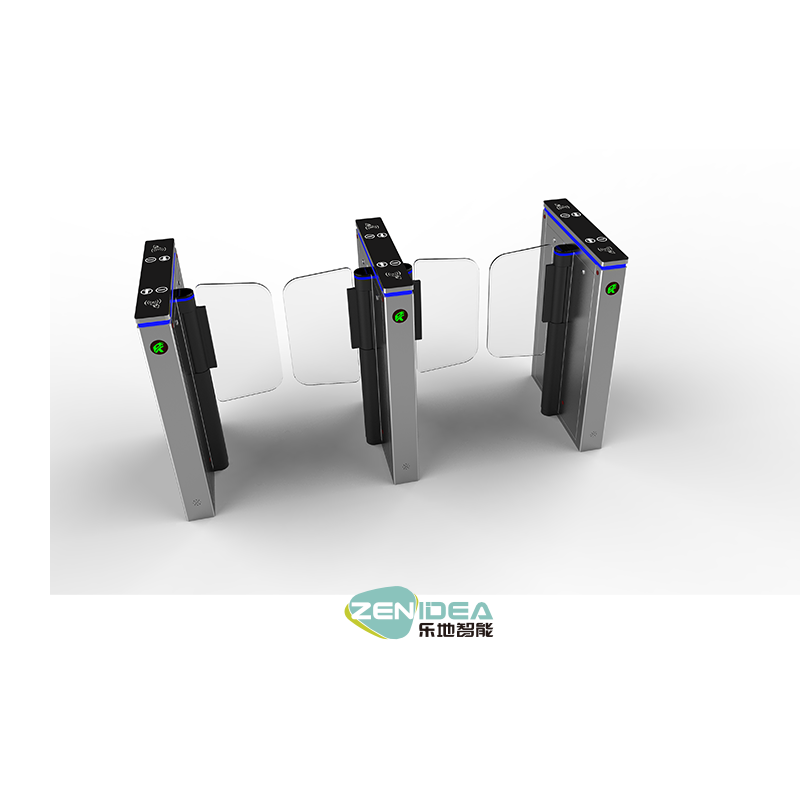

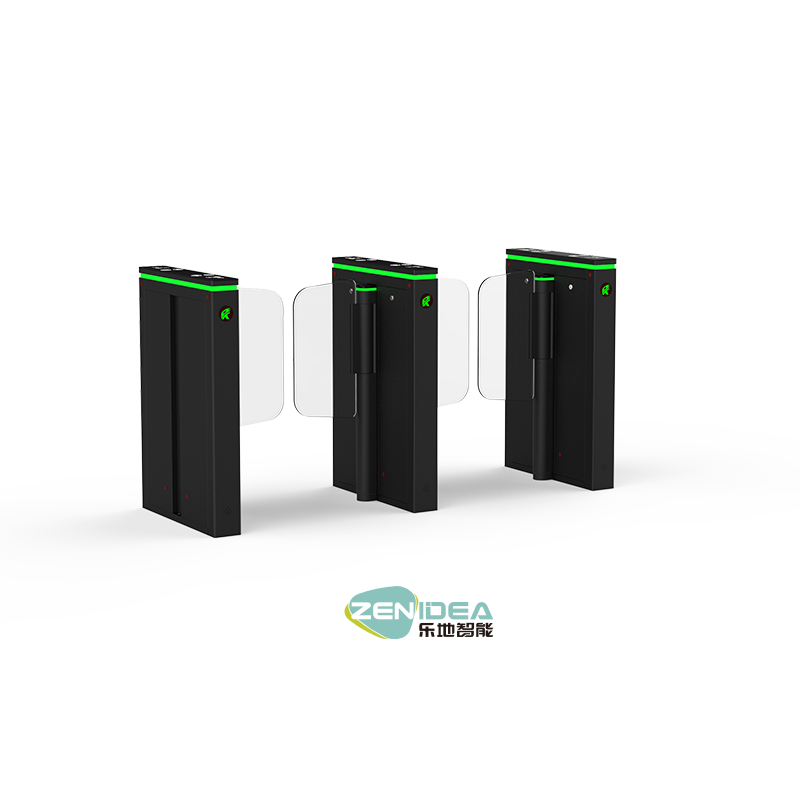

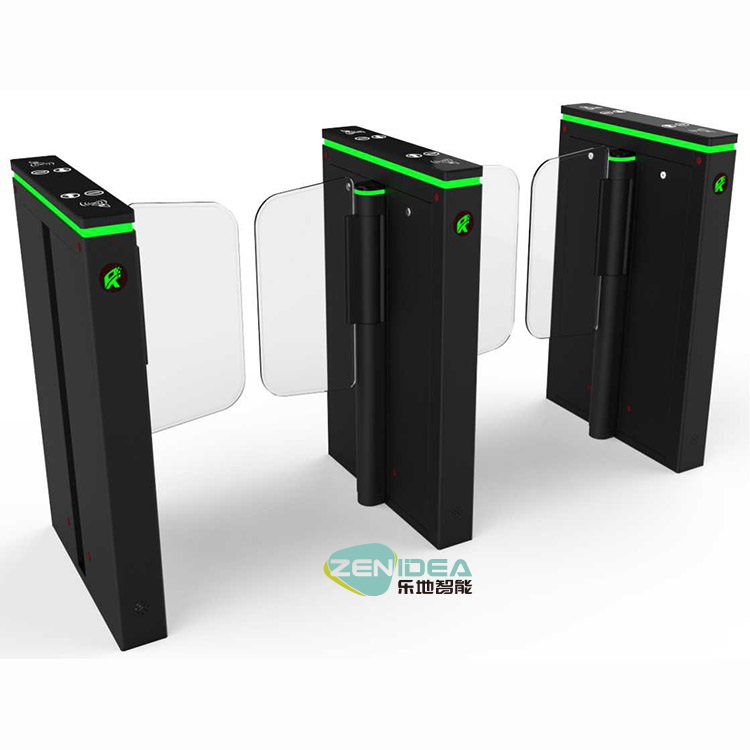

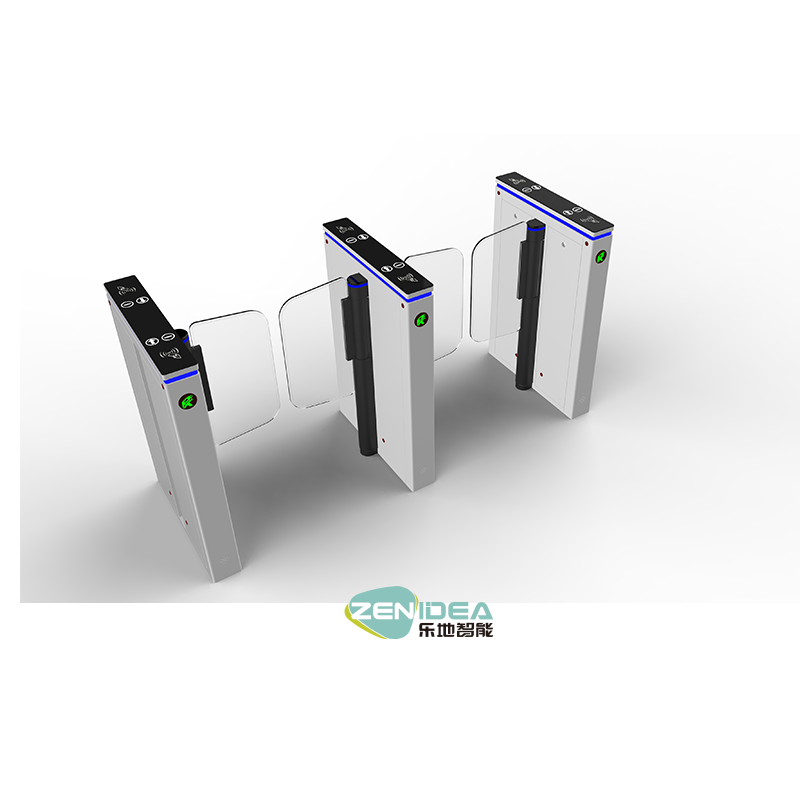

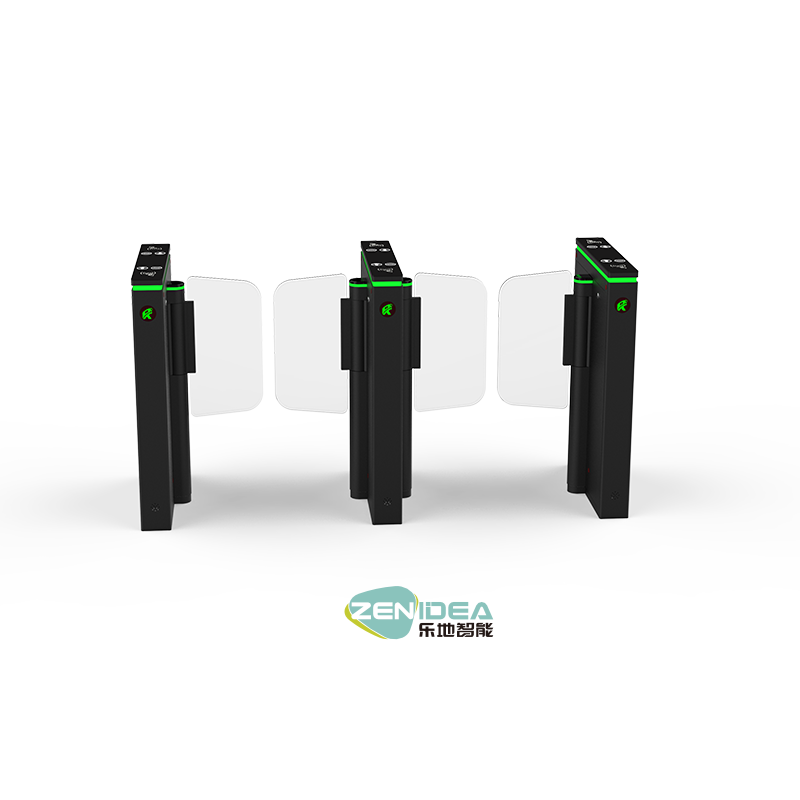

High-Speed Pedestrian Turnstile | OEM Automatic Speed Lane Gate Supplier | LD-SG20
-
Supply period:
day -
Price:
- Parameters
- Dimensions
- Download
- Customization
| Housing Dimensions | 700*120*1020mm |
| Power Voltage: | 220V±10% 50Hz |
| Power Consumption (W): | 40～70W |
| Operation Condition: | -15℃～70℃ |
| Housing Thickness: | 1.2mm+1.0mm |
| Body Material: | Painted Carbon Steel + Acrylic + Tempered Glass + Aluminium Alloy |
| Motor: | DC24V Brushless Electric Motor |
| IP Degree: | IP51 |
| Life Cycle: | 9 Million Times |
| Infrared sensor | 4 Pairs |
| Traffic Flow Applicable: | 110V～240V |
| Operating Humidity: | 20%~95% No Condensation |
| Flow Rate : | 30-45 People Per Minute |
| Width of Passage: | 600mm(Customizable Max 900mm) |
| Net Weight： | Double Core: 41Kg Single Core: 30Kg |
| Gross Weight: | Double Core: 51Kg Single Core: 40Kg |
| Communication: | RS485 RS232/Dry Contact |
